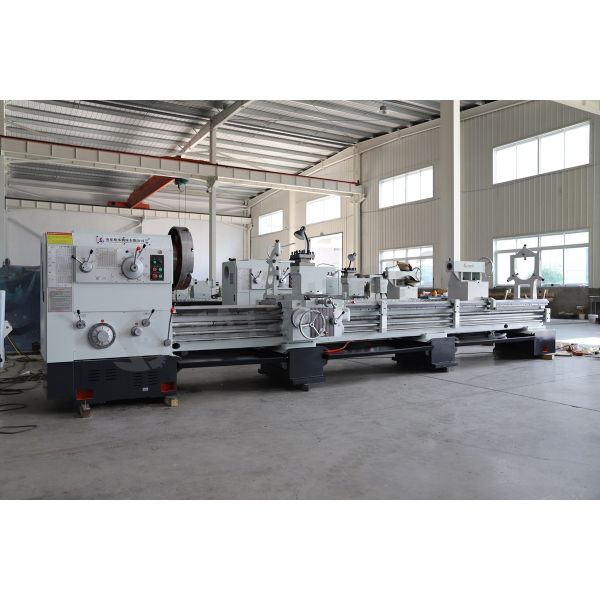

CW61100 Multifunctional Heavy Duty Lathe Machine Horizontal Manual Lathe

Name: CW61100 Multifunctional Heavy Duty Lathe Machine Horizontal Manual Lathe
Brand: Matsumoto
Price: 15000 USD

China CW61100 Multifunctional Heavy Duty Lathe Machine Horizontal Manual Lathe wholesale

Brand Name : Matsumoto

Model Number : CW61100

Certification : CE

Place of Origin : China

MOQ : 1

Price : $15000-20000

Payment Terms : T/T

Delivery Time : 15 working days

Packaging Details : plywood case

Max. Swing over bed : 1100mm

Max. Swing Dia.over carriage : 800mm

Max. Work piece length : 1500/3000/4000/5000/6000mm

Rotating diameter/effective width in saddle groove : 1300/310mm

Upper tool post stroke : 200mm

Tail stock quill travel : 250mm

Contact Now

CW61100 High Quality Multifunctional Heavy Duty Lathe Machine Horizontal Manual Lathe

Description:

CW series manual lathe machine is universal metal machining equipment for metal processing, mainly used for turning the internal and external cylindrical surface, conical surface and other rotating surfaces, and turning internal and external pipe threads such as metric, inch,module,DP threads etc, meanwhile this series is also used to dril holes in bar material and make oil groove, this series lathe is able to process metal materials including cast iron, steel and non-ferrous metals.

PROJECT	UNIT	CW61100B	CW61125B
Max. Swing over bed	mm	1100	1250
Max. Swing Dia.over carriage	mm	800	900
Max. Work piece length	mm	1500/3000/4000/5000/6000	1500/2000/3000-12000
Rotating diameter/effective width in saddle groove	mm	1300/310	1300/310
Spindle through hole diameter and shaft head type	/	104/D11	105/D11
Cone of the front end of the spindle hole and the taper of the tip	/	120,1:20 MT5#	Metric 140 1:20
Spindle speed series and range	r/min	18/4.8-640	18/7.5-1000
Series and range of longitudinal feed	mm/r	64/0.05-24.3	64/0.05-24.3
Metric thread range(kinds)	mm	50/1-240	44/1-120
Inch thread range(kinds)	T.P.I	26/14-1	31/24-1
Modulus thread range(kinds)	mm	53/0.5-120	45/0.5-60
Diameter pitch thread(kinds)	DP	24/28-1	38 1/2-56
Lateral stroke of lower tool post	mm	500	580
Upper tool post stroke	mm	200	300
Tail stock quill travel	mm	250	300
Tail stock quill taper	/	MT5#	MT6#
Main motor power	kw	11/15	22
Cooling pump motor power	w	180	120
Weight	kg	5500/6100/6700/7500/8100	10200/11900/14500/15400/17900/20400/21200/22800
Dimension (LHW)	mm	366015601790 515515601790 621015601790 739015601790	460021501825 610021501825 810021501825 910021501825 1110021501825 1410021501825 1510021501825 1710021501825

Details Images

	HEAD STOCK Gears are hardened and precision ground low noise powerful cutting.
	MANUAL CHUCK Standard: Three jaws Optional: Four jaws chuck and chuck guard

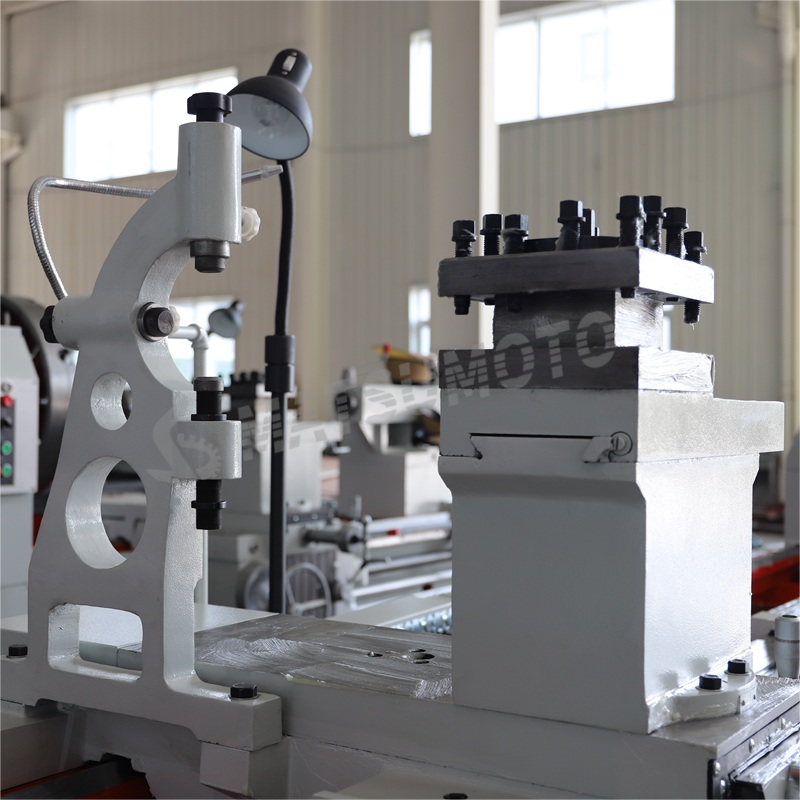

	FOUR STATION TOOL POST T-slotted compound slide with four-way tool post, 4 blades available at most, easy to change quickly.
	FEED SCREW The screw has high precision and runs smoothly.
	ELECTRIC CONTROL BOX The wiring of the electric control box is neat and reasonable, and the original electric parts adopt brand accessories.
	OPTIONAL ACCESSORIES Two axis DRO or three axis DRO.
